HEX FORCE/TORQUE SENSOR - GIVING THE SENSE OF TOUCH TO YOUR ROBOT

  • Flexible sensor extends automation possibilities to processes that weren’t previously possible
  • High-accuracy sensor technology provides 95% better quality in insertion and assembly tasks.
  • Easy programming gets even complex polishing tasks up and running in less than a day
GET A QUOTE
Datasheet

Why HEX 6-AXIS FORCE/TORQUE SENSOR?

OnRobot 6-axis force torque sensors provide accurate force and torque measurements along all 6 axes. This gives you precise control when it comes to difficult assembly, polishing, sanding or deburring jobs. Additionally, the HEX software includes path recording, force control and special features for insertion tasks. This means reduced integration time for your production line. Our sensors are designed to fit most of the current industrial robot arms. Common applications are polishing, sanding, deburring, grinding and assembly, but it can also be used for teach-in and crash detection.
Currently available models: HEX-E /High Precision, HEX-H /Low Deformation, HEX-E QC, HEX-H QC

Extended Automation Possibilities
Extended Automation Possibilities
Enable robots to carry out tasks that require the sensitivity and dexterity of the human hand
Simplified one software system for comlex tasks
Simplified one software system for comlex tasks
Easy deployment, lower number of engineering hours
Faster and better quality production
Faster and better quality production
Due to sensing capabilities, it produces better quality faster

The HEX force/torque sensor’s advantages and features

Designed to fit all major robot brands, OnRobot’s HEX 6-axis force/torque sensor offers 6 degrees of force and torque measurement.  This makes the HEX 6-axis force/torque sensor perfect for complex sanding, deburring, or assembly operations, as it gives you precise control over your end-of-arm tooling’s applied force. The sensor is especially ideal for surface finishing tasks, because it ensures a constant speed and force is kept throughout the finishing. The constant force allows the finishing tool to follow the surface contours of the work piece, leading to a flawless result. Thus, by adding the OnRobot HEX 6-axis force/torque sensor into your production line, you will gain optimization and productivity advantages without compromising the quality of your solutions.

Unique optical based technology

Compared to other technologies the unique OnRobot sensor technology generally much more robust, can resist sudden shocks.

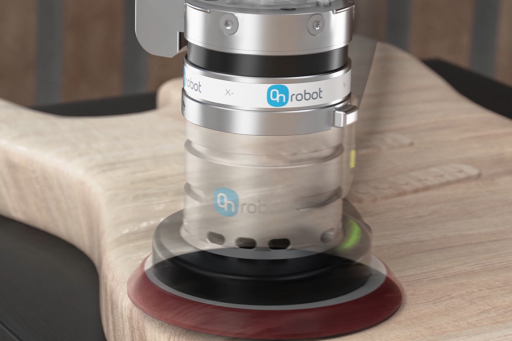

Advanced force control

Keeps constant speed and force while moving

Easy to install graphical user interface, fast programming

You can start your application development within an hour

High accuracy

Precise force/torque measurement on 6 axis ( (Fx,Fy,Fz,Tx,Ty,Tz)

Integrated software

The gripper comes with pre-integrated software that is easy to install and program, so even employees with no technical background can set it up.

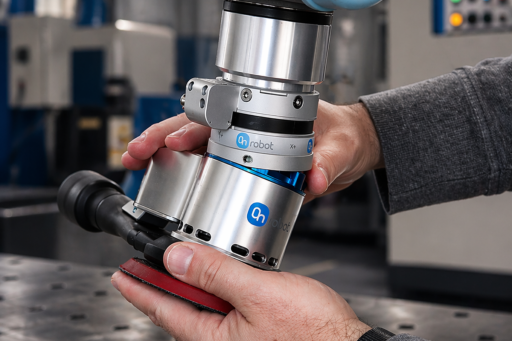

Easy hand guiding, path recording

You can record complex paths within minutes

The HEX force/torque sensor’s advantages and features
VIDEOS

Applications with HEX force/torque sensor

Rimozione del materiale | Automate Surface Finishing with Collaborative Robot Applications

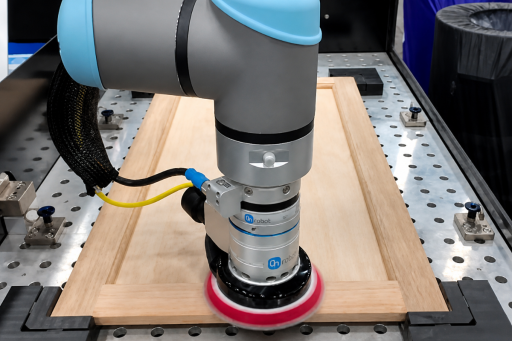

MATERIAL REMOVAL

Search function accurately detects position of object
Provides easy path recording with manual waypoints

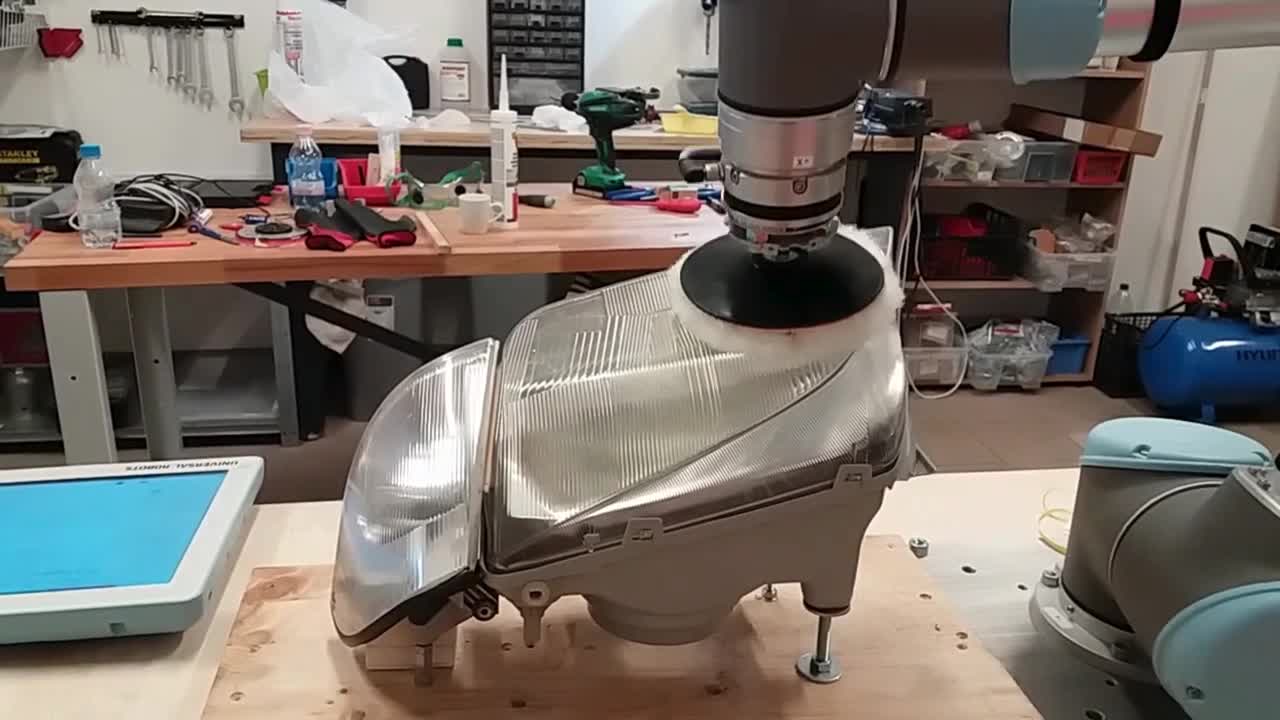

Maintains a precise force to avoid over- or under-polishing




MORE
Assembly Automation | What are Assembly Robot Applications?

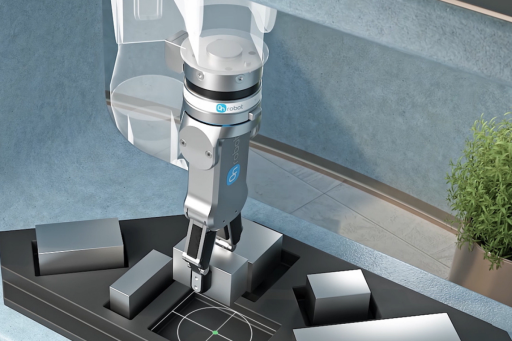

ASSEMBLY

The sensor can search for position and detect work pieces.
Built-in collision detection prevents contact with surface protrusions or other tools.
Intuitive force control software ensures quick deployment




MORE
Machine Tending | Robot Applications in Collaborative Automation
MACHINE TENDING
Material Handling with Collaborative Automation | Pick & Place Robot Applications
MATERIAL HANDLING

Adding a force/torque sensor to the robot wirst helps to place the objects to the required area.




MORE
Quality | Automated Measuring, Testing and Inspecting with Collaborative Robot Applications
QUALITY

Can measure if an object is placed too tightly or loosely
Ensures constant force and torque values




MORE
Example applications with HEX force/torque sensor
  • Collaborative Gripper Combined with HEX Sensor Takes Over the Night Shift

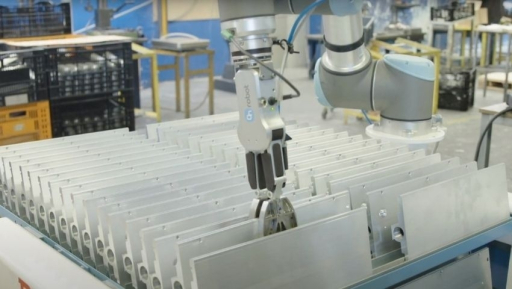

    Collaborative Gripper Combined with HEX Sensor Takes Over the Night Shift

    Donk Industries is one of the largest small-series aluminum parts manufacturers in the Benelux countries. To help keep inventories low and supply customers on time with a wide variety of products, an RG6 gripper with HEX sensor from OnRobot automatically feeds one of eight CNC machines around the clock.

    With a shortage of skilled labor, this lets employees move to more interesting tasks while doubling output of the CNC machine with higher and more stable product quality.

    MORE
